HTO-S SERIESSERVO-SAVING INJECTION MOLDING MACHINE
HTS servo energy-saving injection molding machine
Product introduction Detail presentation Servo energy saving Parameter configuration



Series characteristics


Large mold space: adapt to a larger mold

Servo motors and drives: more energy efficient/faster response/high repetition accuracy/reduced noise

CAM ring mechanism: simple and accurate mold thickness adjustment mechanism to ensure correct and constant clamping force clamping tonnage automatic correction

Advanced control interface: high-speed microprocessor/ergonomic layout/direct menu key access/data image monitoring/self-diagnosis and fault detection capabilities

Precision steel guide rail: reduce the movement deviation during the injection process to ensure the injection coaxial

Optimized elbow design: high-speed closing system, optimize template design, reduce template deformation to provide greater mold bearing capacity

Closed-loop PID temperature control: Precise temperature control, excellent process control stability

Multi-stage ejection: Smooth and fast ejection action/easy ejection rod installation/ejection full guide/pulse ejection can be realized

Large area support formwork guide: reduces formwork deviation, enhances tie rod life, and increases mold carrying capacity

Double cylinder injection unit: the screw force is more uniform, the screw assembly and disassembly are convenient, and the repetition accuracy of the die product is controlled within 3 ‰


Application field


Medical supplies industry: Medical polymer molding equipment, as the name suggests, refers to medical second-class testing. testing equipment,  pharmaceutical packaging, and three types of injection infusion, blood collection, experimental supplies, plastic auxiiary  equipment and so on.

High-end daily necessities industry: With exclusive design andprofessional applicationthis series ofmachine is suitable forinjection molding of various high  viscosity PC PA reinforced and other low-voltageelectrical appliances, especially suitable for plastic products with  relatively stable requirements for injectionspeed,injectionpressure rigidlockingmolding process such as switch panel,  contactor and circuit breaker. It is also suitable for the production ofvarioushigh-precisionconnectors and electronic and  electrical components.

High-end packaging industry: with exclusive design and professional application. this series of machine is suitable for the injection molding of  various types 0f stationery pens, especially suitable for plastic products with stable requirements for injection speed,  injection pressure, mold locking rigidity jacking force and molding process, such as deep cavity, refill and multi-mode  cavity number. lt is also suitable for injection molding of various stationery products.

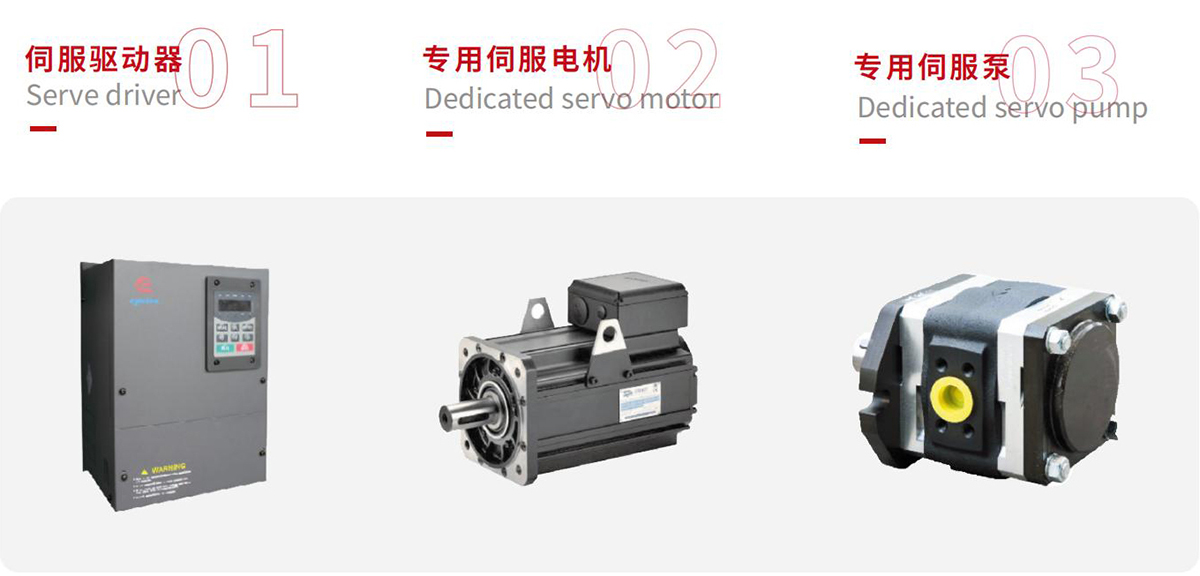

高端配置，超強省電效果，品質超群 ! 加強型伺服節能注塑機，在正常和極端生產環境中工作非常穩定，無報警 ( 如高壓，快速等 ) 輸出功率隨負載變化而變化，不存在多余能量的浪費。冷卻極端電機不工作，耗電為0。伺服節能注塑機相比傳統注塑機可節省 20%-80%，給您帶來真正的省電享受，經濟效益顯著。



成型穩定性極佳：伺服驅動系統，壓力、流量采用閉環控制，相比較傳統注塑機，成型重復精度明顯提高

油溫恒定：伺服電機按比例輸出液壓油，避免多余熱量產生。液壓油甚至不需要冷卻實現大幅度節水

響應速度快：伺服驅動響應迅速，快速啟動時間比傳統注射提高 50%

大幅節能：在等條件下，相比傳統定量泵注塑機節能 20%-80%

超性能環保：整機運行低噪音，低速運行更寧靜
